To prepare an audio recording in Sequel the following points should be checked

• Is the correct driver for the audio connection at the "Program Settings Page" in Sequel selected?
• Which audio hardware is used, e.g. the integrated audio hardware of your computer or do you work with additionally purchased audio hardware?
• Have you checked for proper audio cable connections?
• Is the instrument you would like to record creating enough level?

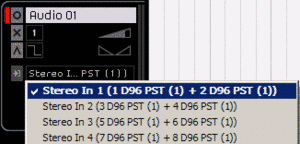

• Have you selected the used audio input for the audio track in Sequel (the input selection field is visible at medium track height or higher)?

The following steps are describing the setup when integrated audio hardware of your computer is used

Mac OS X

The procedure here is to change the preferred audio input:

• Go to the Apple menu and select "System Preferences..."
• There, start the control panel "Sound"
• Select the tab "Input" and select the desired input source, e.g. Line-In input.
• You can also adjust the input level here, in case your input signal is too weak (or too heavy).

PC Windows

If you work with the ASIO DirectX Full Duplex driver in Sequel then make the following settings in Windows:

• Go to the Windows Start menu > Control Panels > Sounds and Audio Devices > Tab: Volume and click on "Advanced..." The Volume Control appears. Alternatively you can open this window by double clicking on the loudspeaker symbol at the right bottom of the task bar.
• In the Volume Control window go to menu "Options" and select "Properties"
• There, select "Recording" for "Adjust volume for", then click "OK".
• The "Recording Control" window appears. There, use the "Select" checkmark to select your desired input source, e.g. Line-In.
• You can also adjust the input level here, in case your input signal is too weak (or too heavy).

Additional information

• If you want high quality recordings and being able to work with low latency it is recommended to get dedicated audio hardware from your music retail store.
• These devices are usually delivered with dedicated drivers and control panel software where you can setup the signal flow and input routing. The settings made in Windows / Mac OS X are not relevant anymore.
• If you have a problem with feedback please consult this article here.
• For additional information and general setup scenarios please also consult the operation manual of Sequel!
